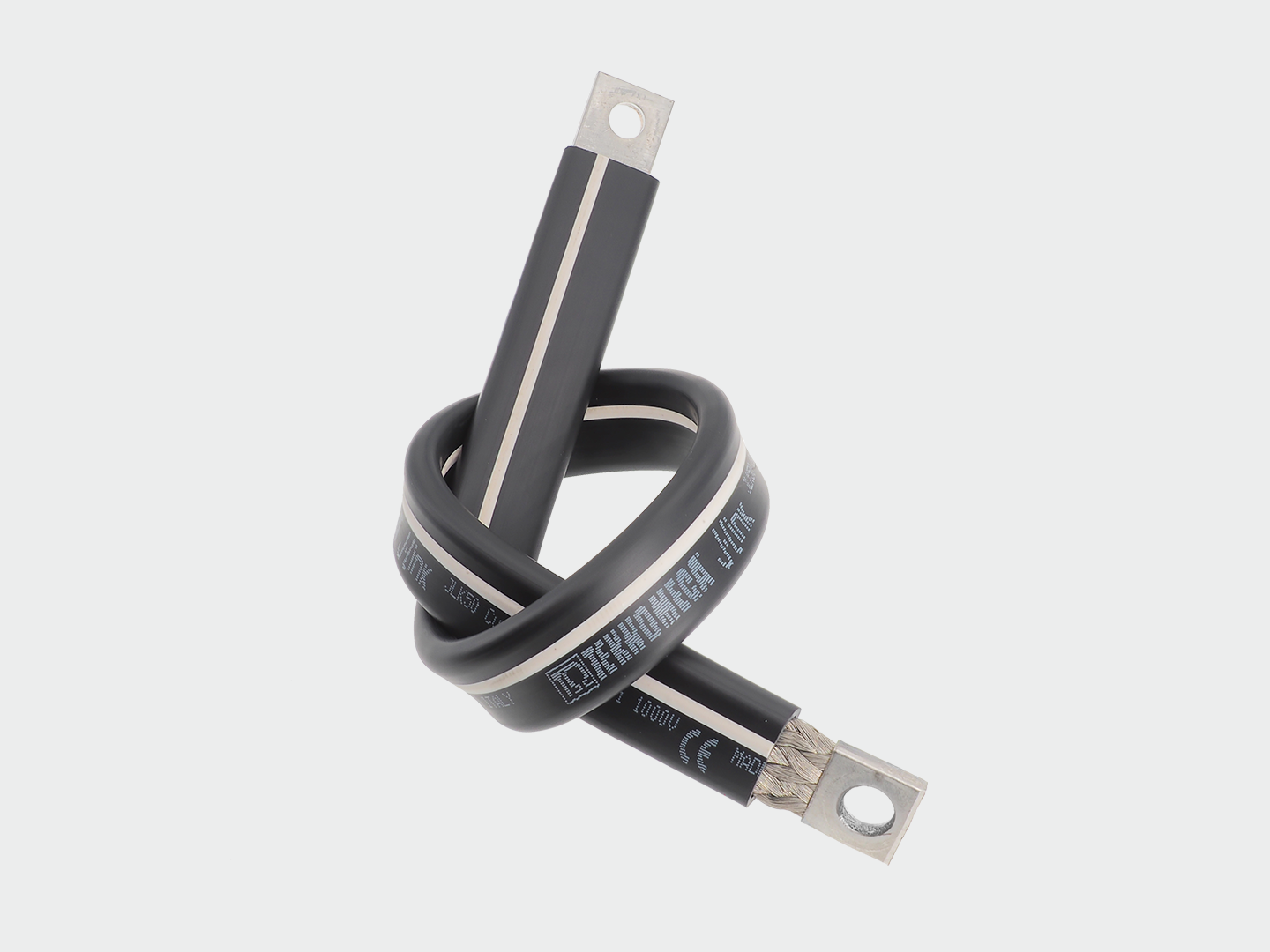

JLINK – Braided joints

High performance with J-LINK, equipped with PVC insulation, flame retardant and hyper flexible.
J-LINK PLUS is recognizable from the light white line.
The maximum continuous operation temperature is 105 °C.

GAMMA
Cross-sections: from 25 mm² to 240 mm²
Lengths: from 230 mm to 1030 mm
Rated ampacity: 125 A to 630 A

Technical Characteristics

Insulation
PVC compound
Black color with a white stripe
Self-extinguishing: UL 94-V0
Thickness: 1,9 mm
Class II according to Par. 8.4.4 IEC 61439-1
Recyclable

Finishinged product
Dielectric strenght: 20 kV/mm
Rated voltage: 1000V AC / 1500V DC
Working temperatures: −40 °C ÷ +105 °C

Conductor
Tinned electrolytic copper braid Cu-ETP 99,90%
Standard wire 0,20 mm
Terminal in tinned copper tube

Comparison of use between cable and J-LINK

In(A)

Cable type N07-VK*

J-LINK

Section (mm2)

125

35

25

160

50 ÷ 70

25 ÷ 35

250

95 ÷ 120

50

350

150 ÷ 185

85

400

240

120

630

2 x 150

240

←
→
CodeReferenceSection (mm²)Use with switch with
+JLK1000JLK 25-23025A 125
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.08

Dimensions (mm):
L: 230
B: 20
H: 20
L1: 7.5
L2: 8
d1: 8.5
d2: 10.5
s: 4.3
+JLK1005JLK 25-33025A 125
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.13

Dimensions (mm):
L: 330
B: 20
H: 20
L1: 7.5
L2: 8
d1: 8.5
d2: 10.5
s: 4.3
+JLK1010JLK 25-43025A 125
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.17

Dimensions (mm):
L: 430
B: 20
H: 20
L1: 7.5
L2: 8
d1: 8.5
d2: 10.5
s: 4.3
+JLK1015JLK 25-53025A 125
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.2

Dimensions (mm):
L: 530
B: 20
H: 20
L1: 7.5
L2: 8
d1: 8.5
d2: 10.5
s: 4.3
+JLK1020JLK 25-63025A 125
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.24

Dimensions (mm):
L: 630
B: 20
H: 20
L1: 7.5
L2: 8
d1: 8.5
d2: 10.5
s: 4.3
+JLK1021JLK 25-73025A 125
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.26

Dimensions (mm):
L: 730
B: 20
H: 20
L1: 7.5
L2: 8
d1: 8.5
d2: 10.5
s: 4.3
+JLK1022JLK 25-83025A 125
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.3

Dimensions (mm):
L: 830
B: 20
H: 20
L1: 7.5
L2: 8
d1: 8.5
d2: 10.5
s: 4.3
+JLK1023JLK 25-93025A 125
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.34

Dimensions (mm):
L: 930
B: 20
H: 20
L1: 7.5
L2: 8
d1: 8.5
d2: 10.5
s: 4.3
+JLK1024JLK 25-103025A 125
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.38

Dimensions (mm):
L: 1030
B: 20
H: 20
L1: 7.5
L2: 8
d1: 8.5
d2: 10.5
s: 4.3
+JLK1025JLK 35-23035A 160
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.13

Dimensions (mm):
L: 230
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 4.9
+JLK1030JLK 35-33035A 160
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.17

Dimensions (mm):
L: 330
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 4.9
+JLK1035JLK 35-43035A 160
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.22

Dimensions (mm):
L: 430
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 4.9
+JLK1040JLK35-53035A 160
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.27

Dimensions (mm):
L: 530
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 4.9
+JLK1045JLK 35-63035A 160
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.28

Dimensions (mm):
L: 630
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 4.9
+JLK1046JLK 35-73035A 160
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.34

Dimensions (mm):
L: 730
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 4.9
+JLK1047JLK 35-83035A 160
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.34

Dimensions (mm):
L: 830
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 4.9
+JLK1048JLK 35-93035A 160
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.37

Dimensions (mm):
L: 930
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 4.9
+JLK1049JLK 35-103035A 160
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.4

Dimensions (mm):
L: 1030
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 4.9
+JLK1050JLK 50-23050A 250
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.16

Dimensions (mm):
L: 230
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 5
+JLK1055JLK 50-33050A 250
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.2

Dimensions (mm):
L: 330
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 5
+JLK1060JLK 50-43050A 250
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.28

Dimensions (mm):
L: 430
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 5
+JLK1065JLK 50-53050A 250
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.36

Dimensions (mm):
L: 530
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 5
+JLK1070JLK 50-63050A 250
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.41

Dimensions (mm):
L: 630
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 5
+JLK1071JLK 50-73050A 250
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.47

Dimensions (mm):
L: 730
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 5
+JLK1072JLK 50-83050A 250
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.46

Dimensions (mm):
L: 830
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 5
+JLK1073JLK 50-93050A 250
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.6

Dimensions (mm):
L: 930
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 5
+JLK1074JLK 50-103050A 250
| |

Specifications:
Pieces per package: 10
Weight (kg): 0.65

Dimensions (mm):
L: 1030
B: 20
H: 20
L1: 9
L2: 9.5
d1: 8.5
d2: 10.5
s: 5
+JLK1140JLK 85-23085A 350
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.26

Dimensions (mm):
L: 230
B: 25
H: 24
L1: 9.5
L2: 11
d1: 8.5
d2: 10.5
s: 6.5
+JLK1145JLK 85-33085A 350
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.35

Dimensions (mm):
L: 330
B: 25
H: 24
L1: 9.5
L2: 11
d1: 8.5
d2: 10.5
s: 6.5
+JLK1150JLK 85-43085A 350
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.44

Dimensions (mm):
L: 430
B: 25
H: 24
L1: 9.5
L2: 11
d1: 8.5
d2: 10.5
s: 6.5
+JLK1155JLK 85-53085A 350
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.5

Dimensions (mm):
L: 530
B: 25
H: 24
L1: 9.5
L2: 11
d1: 8.5
d2: 10.5
s: 6.5
+JLK1160JLK 85-63085A 350
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.6

Dimensions (mm):
L: 630
B: 25
H: 24
L1: 9.5
L2: 11
d1: 8.5
d2: 10.5
s: 6.5
+JLK1165JLK 85-73085A 350
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.68

Dimensions (mm):
L: 730
B: 25
H: 24
L1: 9.5
L2: 11
d1: 8.5
d2: 10.5
s: 6.5
+JLK1170JLK 85-83085A 350
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.76

Dimensions (mm):
L: 830
B: 25
H: 24
L1: 9.5
L2: 11
d1: 8.5
d2: 10.5
s: 6.5
+JLK1175JLK 85-93085A 350
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.85

Dimensions (mm):
L: 930
B: 25
H: 24
L1: 9.5
L2: 11
d1: 8.5
d2: 10.5
s: 6.5
+JLK1180JLK 85-103085A 350
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.95

Dimensions (mm):
L: 1030
B: 25
H: 24
L1: 9.5
L2: 11
d1: 8.5
d2: 10.5
s: 6.5
+JLK1075JLK 120-330120A 400
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.5

Dimensions (mm):
L: 330
B: 30
H: 30
L1: 11
L2: 15
d1: 10.5
d2: 10.5
s: 7.5
+JLK1080JLK 120-430120A 400
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.64

Dimensions (mm):
L: 430
B: 30
H: 30
L1: 11
L2: 15
d1: 10.5
d2: 10.5
s: 7.5
+JLK1085JLK 120-530120A 400
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.72

Dimensions (mm):
L: 530
B: 30
H: 30
L1: 11
L2: 15
d1: 10.5
d2: 10.5
s: 7.5
+JLK1090JLK 120-630120A 400
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.9

Dimensions (mm):
L: 630
B: 30
H: 30
L1: 11
L2: 15
d1: 10.5
d2: 10.5
s: 7.5
+JLK1095JLK 120-730120A 400
| |

Specifications:
Pieces per package: 2
Weight (kg): 1.06

Dimensions (mm):
L: 730
B: 30
H: 30
L1: 11
L2: 15
d1: 10.5
d2: 10.5
s: 7.5
+JLK1096JLK 120-830120A 400
| |

Specifications:
Pieces per package: 2
Weight (kg): 1.19

Dimensions (mm):
L: 830
B: 30
H: 30
L1: 11
L2: 15
d1: 10.5
d2: 10.5
s: 7.5
+JLK1097JLK 120-930120A 400
| |

Specifications:
Pieces per package: 2
Weight (kg): 1.33

Dimensions (mm):
L: 930
B: 30
H: 30
L1: 11
L2: 15
d1: 10.5
d2: 10.5
s: 7.5
+JLK1098JLK 120-1030120A 400
| |

Specifications:
Pieces per package: 2
Weight (kg): 1.47

Dimensions (mm):
L: 1030
B: 30
H: 30
L1: 11
L2: 15
d1: 10.5
d2: 10.5
s: 7.5
+JLK1100JLK 240-330240A 630
| |

Specifications:
Pieces per package: 2
Weight (kg): 0.94

Dimensions (mm):
L: 330
B: 35
H: 32
L1: 16
L2: 16
d1: 12.5
d2: 10.5
s: 12.5
+JLK1105JLK 240-430240A 630
| |

Specifications:
Pieces per package: 2
Weight (kg): 1.16

Dimensions (mm):
L: 430
B: 35
H: 32
L1: 16
L2: 16
d1: 12.5
d2: 10.5
s: 12.5
+JLK1110JLK 240-530240A 630
| |

Specifications:
Pieces per package: 2
Weight (kg): 1.4

Dimensions (mm):
L: 530
B: 35
H: 32
L1: 16
L2: 16
d1: 12.5
d2: 10.5
s: 12.5
+JLK1115JLK 240-630240A 630
| |

Specifications:
Pieces per package: 2
Weight (kg): 1.64

Dimensions (mm):
L: 630
B: 35
H: 32
L1: 16
L2: 16
d1: 12.5
d2: 10.5
s: 12.5
+JLK1120JLK 240-730240A 630
| |

Specifications:
Pieces per package: 2
Weight (kg): 1.97

Dimensions (mm):
L: 730
B: 35
H: 32
L1: 16
L2: 16
d1: 12.5
d2: 10.5
s: 12.5
+JLK1125JLK 240-830240A 630
| |

Specifications:
Pieces per package: 2
Weight (kg): 2.23

Dimensions (mm):
L: 830
B: 35
H: 32
L1: 16
L2: 16
d1: 12.5
d2: 10.5
s: 12.5
+JLK1130JLK 240-930240A 630
| |

Specifications:
Pieces per package: 2
Weight (kg): 2.48

Dimensions (mm):
L: 930
B: 35
H: 32
L1: 16
L2: 16
d1: 12.5
d2: 10.5
s: 12.5
+JLK1135JLK 240-1030240A 630
| |

Specifications:
Pieces per package: 2
Weight (kg): 2.72

Dimensions (mm):
L: 1030
B: 35
H: 32
L1: 16
L2: 16
d1: 12.5
d2: 10.5
s: 12.5

Related products

JLINK Color
JLINK Color
JLINK PLUS
JLINK PLUS

The ΩWARE software facilitates the sizing of the electrical panel, saves time and minimizes the possibility of error

DOWNLOAD IT FOR FREE
