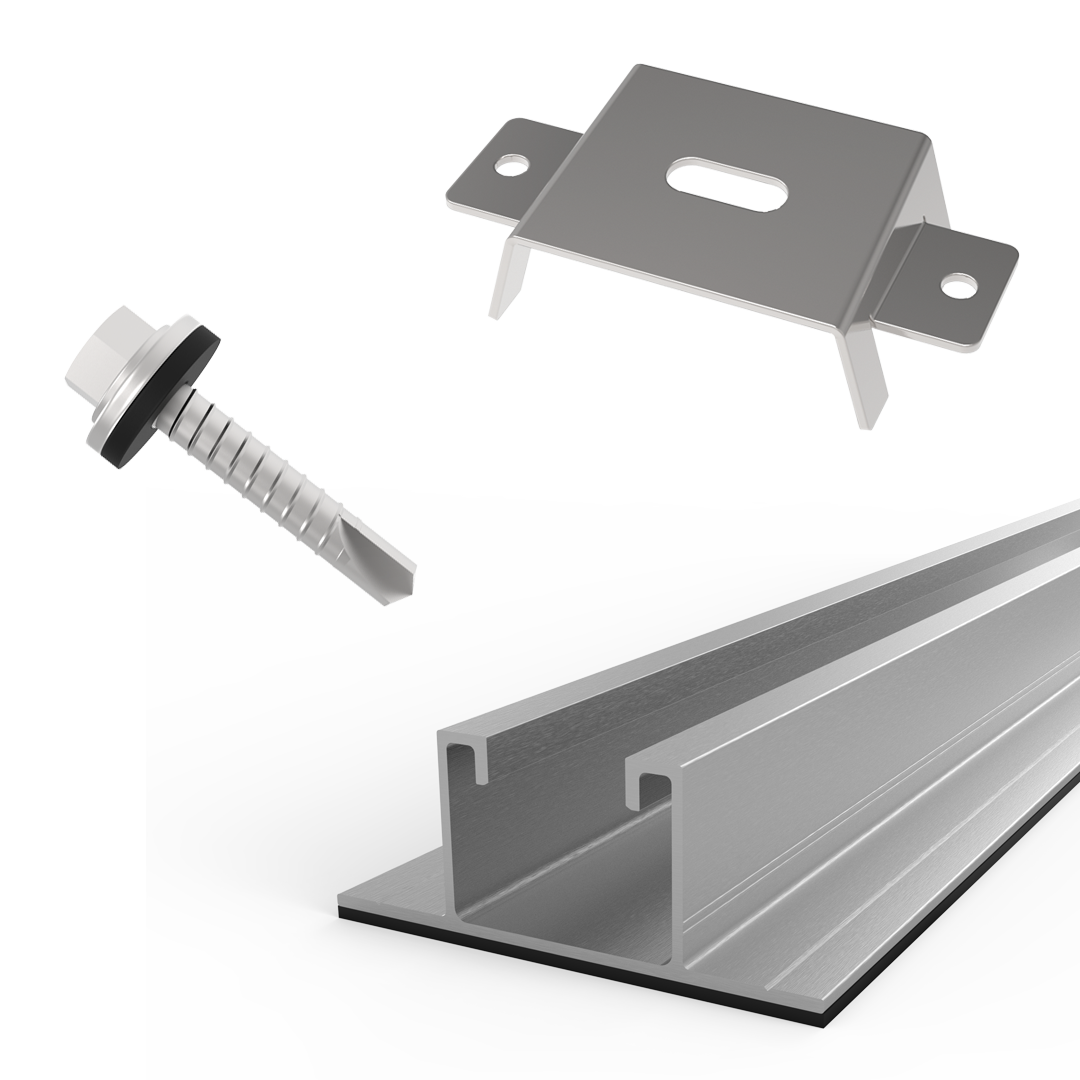

Profile segment
ALU profile segment EPDM
ALU profile segment
Large base EPDM
ALU profile segment EPDM
NOTE: pre-assembled or universal jaws must be ordered separately
← | → | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Reference | L (mm) | Hole distance (mm) | Thickness (mm) | Weight (kg) | ||||||||||
| + | FVT7221 | FVP-L120-RI-ALU-EPDM | 120 | 90 | 1.6 | 0.08 | |||||||||
Specifications: |
|||||||||||||||
| + | FVT7251 | FVP-L230-RI-ALU-EPDM | 230 | Between external holes: 200 Between neighboring holes: 100 | 1.6 | 0.15 | |||||||||
Specifications: |
|||||||||||||||
ALU profile segment
NOTE: pre-assembled or universal jaws must be ordered separately
← | → | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Reference | L (mm) | Hole distance (mm) | Thickness (mm) | Weight (kg) | ||||||||||
| + | FVT7300 | FVP-L280-RI-ALU | 280 | 250 | 1.6 | 0.16 | |||||||||
Specifications: |
|||||||||||||||
| + | FVT7400 | FVP-L363-RI-ALU | 363 | 333 | 1.6 | 0.2 | |||||||||
Specifications: |
|||||||||||||||
Large base EPDM
← | → | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Reference | L (mm) | Thickness (mm) | Weight (kg) | |||||||||||
| + | FVT7219 | FVP-L0,4-UNI-ALU | 400 | 1.6 | 0.38 | ||||||||||
Specifications: |
|||||||||||||||
